Swell Illuminated 56" LED Smart Fan (903856FBN-LDD) by Hinkley

Image may not reflect selected features
No Image
Available

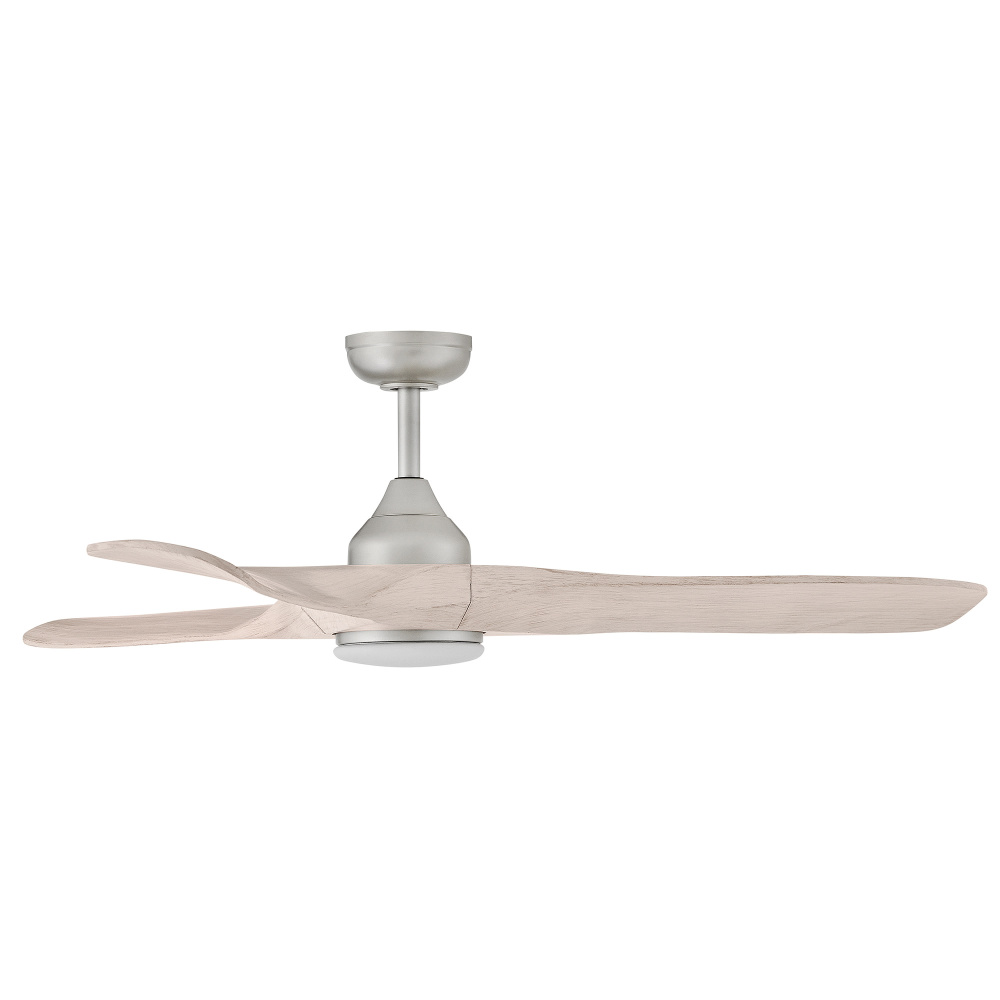

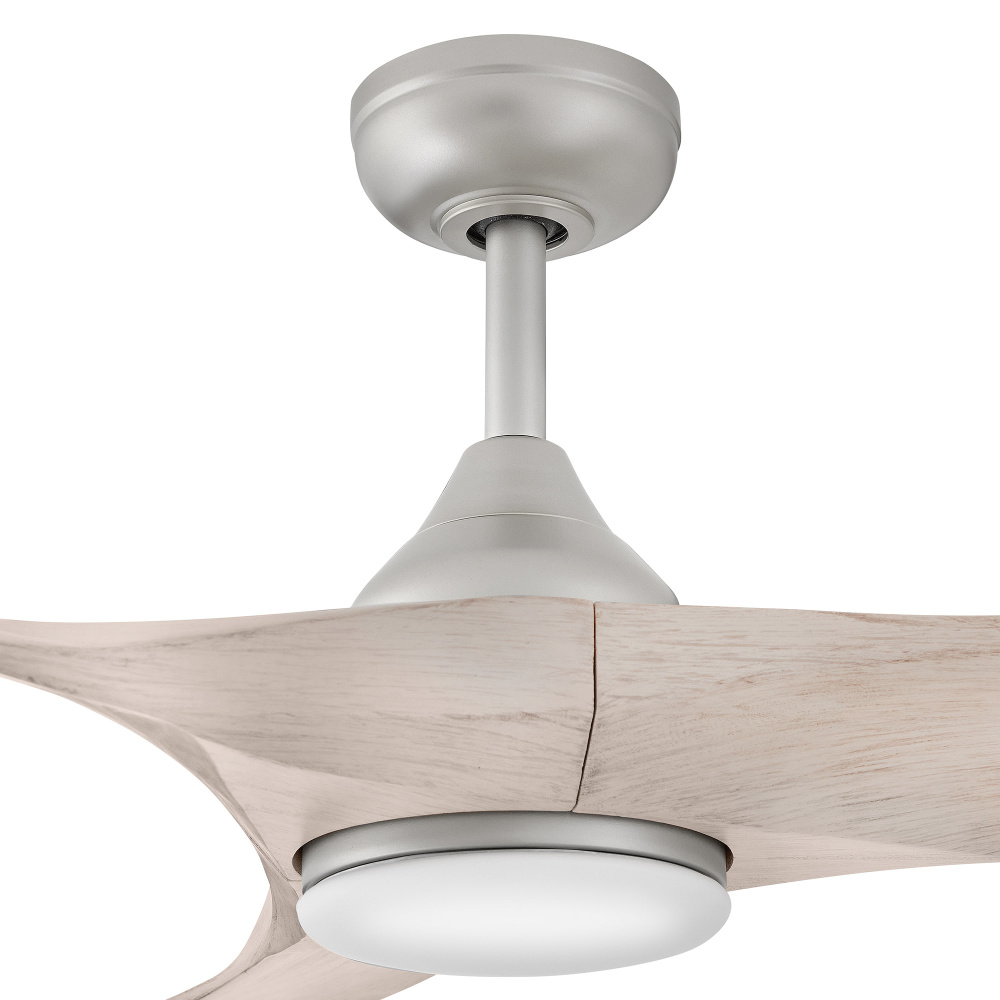

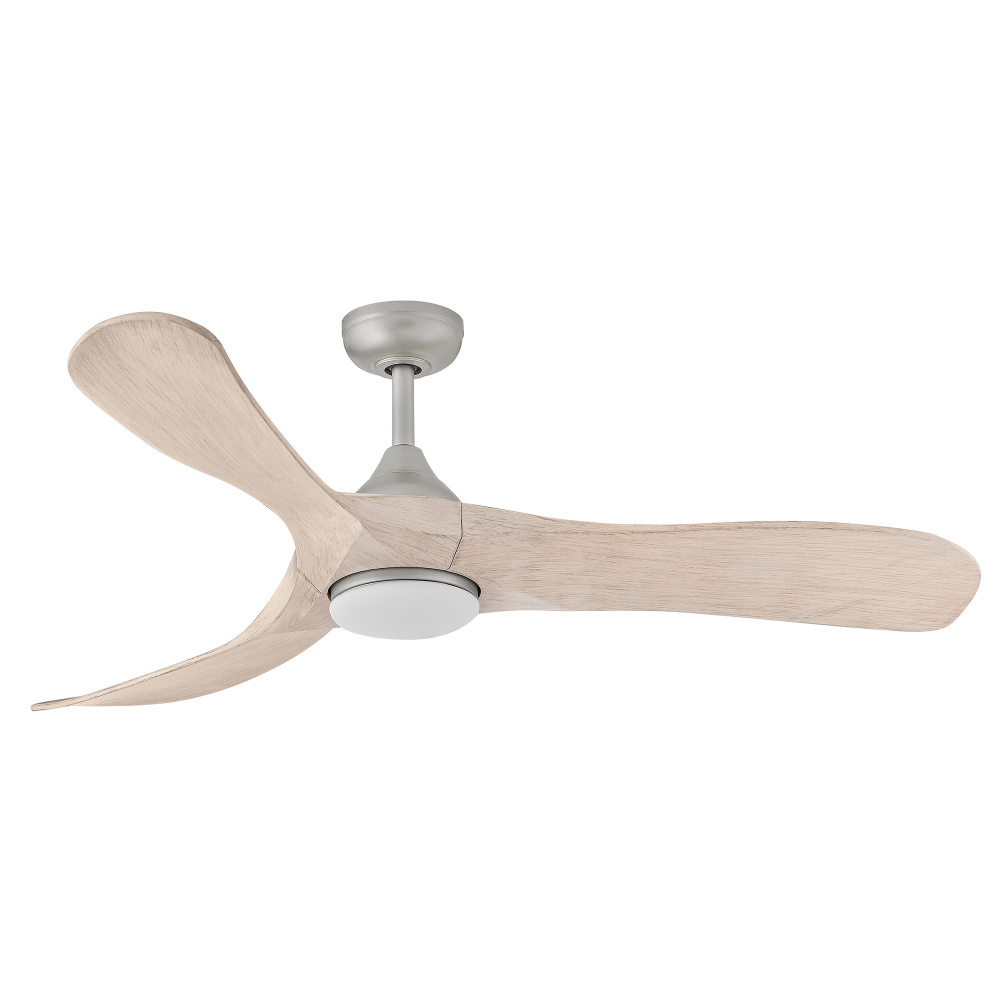

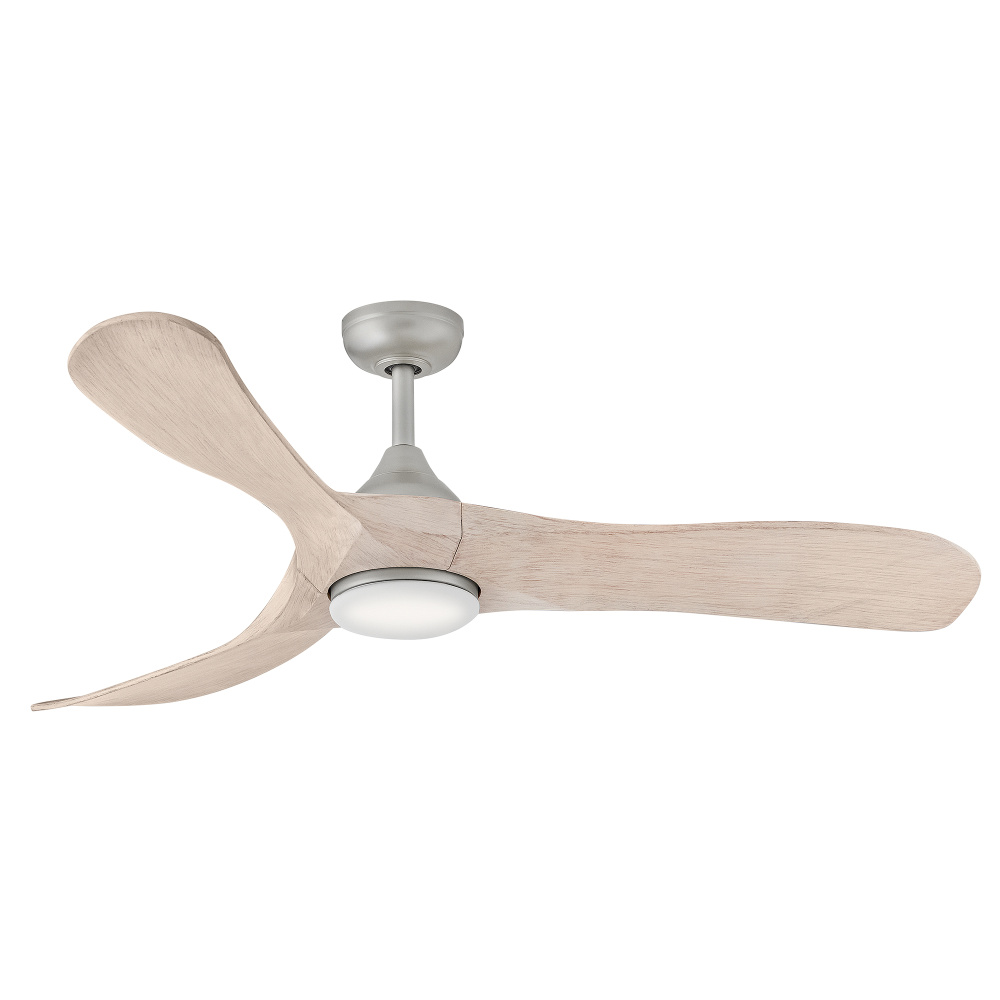

Swell Illuminated 56" LED Smart Fan
BASE PRICE:
$
869
00
/ / 1
($869.00 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
903856FBN-LDD

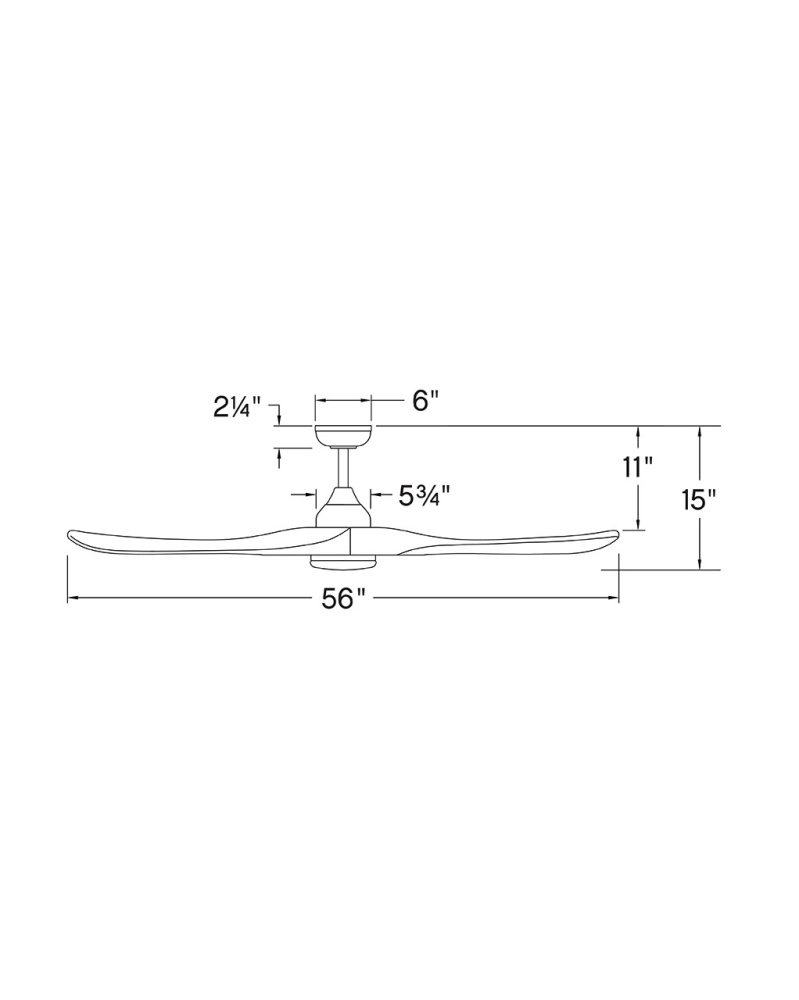

Dimensions:
Height: 15.00"
Width: 56.00"
Length: 56.00"
Changes Other Selections...
Changes Other Selections...
Changes Other Selections...
Changes Other Selections...
Availability:
  • Manufacturer availability unknown.
  • Item may be on Backorder until 02/27/2026 or later.
Description
Details
Downloads

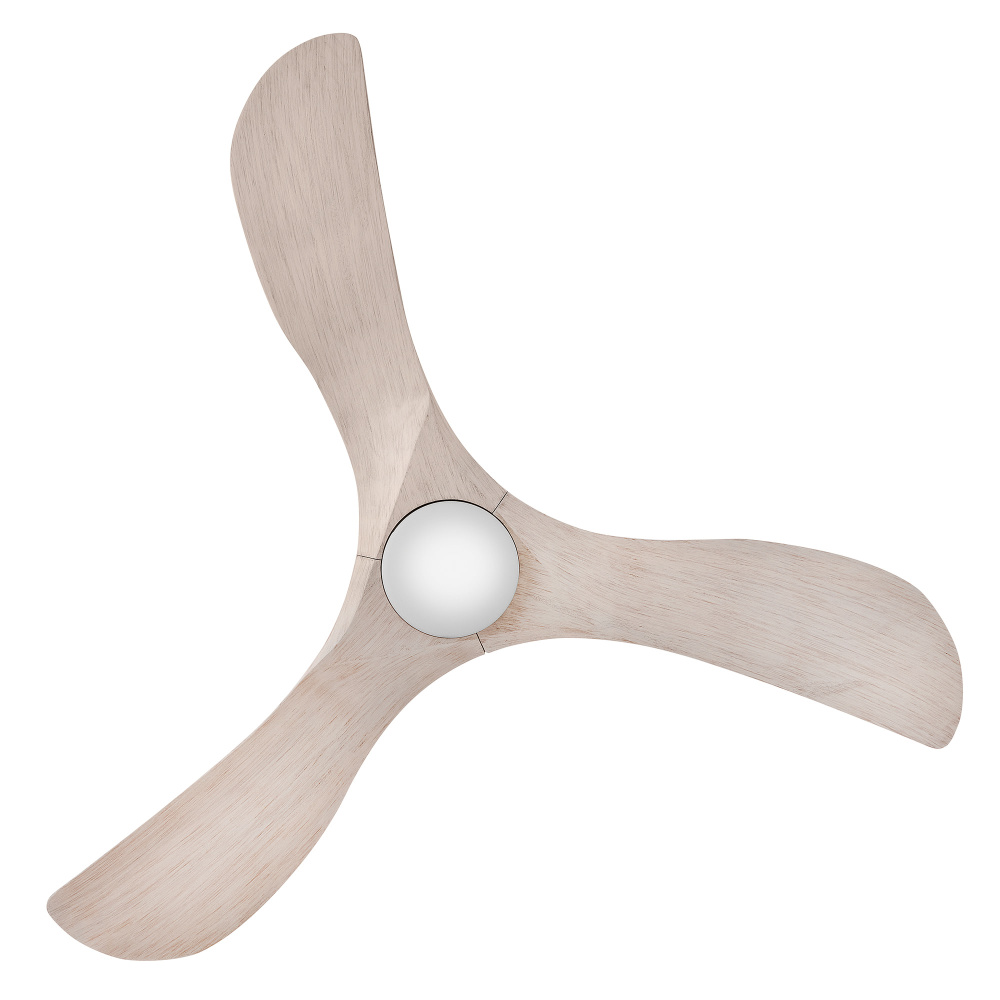

Sophisticated and distinct, Swell Illuminated perfectly sets the scene in contemporary spaces without sacrificing functionality – featuring integrated LEDs complemented by a variety of classic finish combinations. A versatile, damp-rated design makes Swell perfect for both interior and outdoor settings. Equipped with a 6-speed DC motor that is WiFi enabled and ready to connect right out of the box. Operated by the HIRO control or WiFi compatible with the Hinkley app.
Vendor Item #:
903856FBN-LDD
Category:
Fans
Subcategory:
Ceiling Fans with Light
Finish:
Nickel
Style:
Modern
Option:
Title 24 , Damp Rated , LED
Voltage:
100-120
Glass Finish or Style:
Etched , Opal
Lumens:
1101-1600
Kelvin:
2501-3000
Location Rating:
Damp Rated
Smart Home:
Yes
Category:
Fan
Finish:
Brushed Nickel
Style:
Modern
Option:
LED , Title 24
Family:
Swell Illuminated
Glass:
Etched Opal
Voltage:
120 V
Number of Bulbs:
1 Bulbs
Air Flow Efficiency:
7708
Amperage:
0.48
Blade Finish:

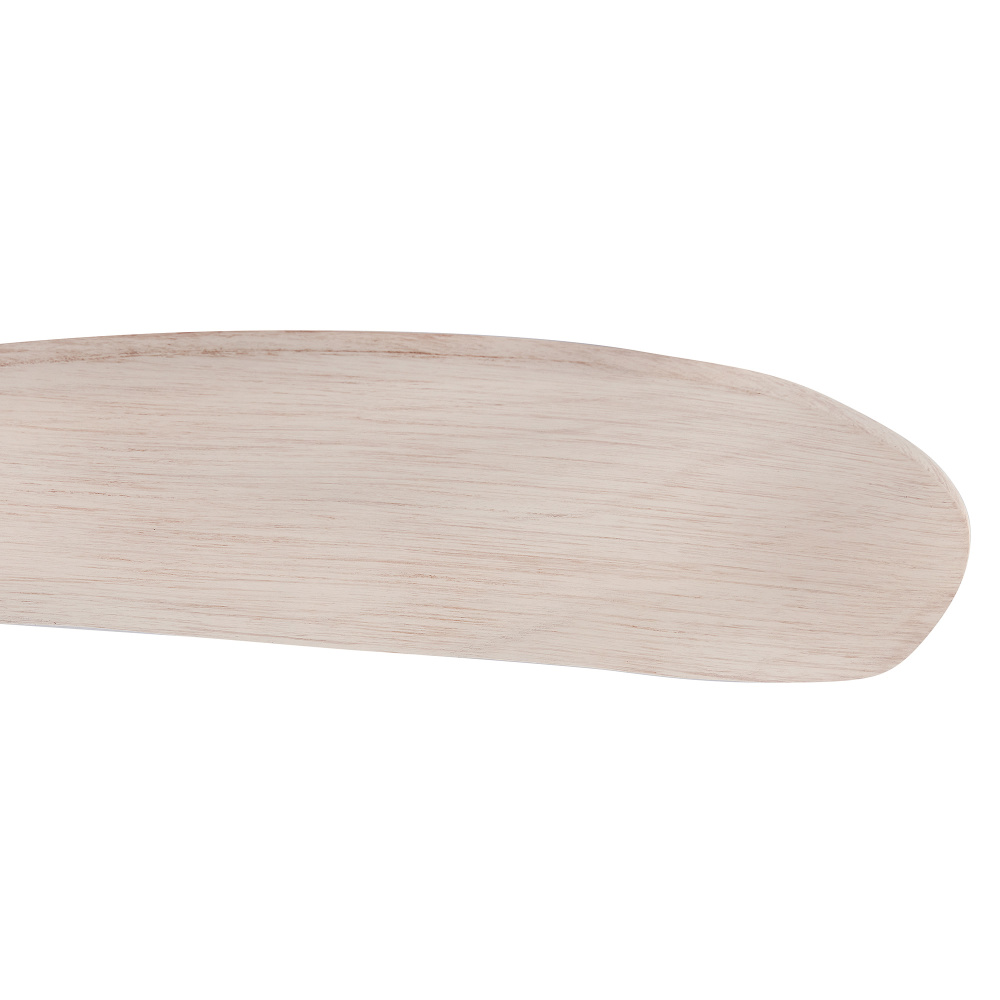

Bleached Ashwood
Blade Pitch:
14
Blade Span:
56
Bulb Dimmable:
Yes
Bulb Hours:
50000
Bulb Type:
LED
Canopy:
6 Dia x 2.25 D
Introduction Date:
01/01/2026
Kelvin:

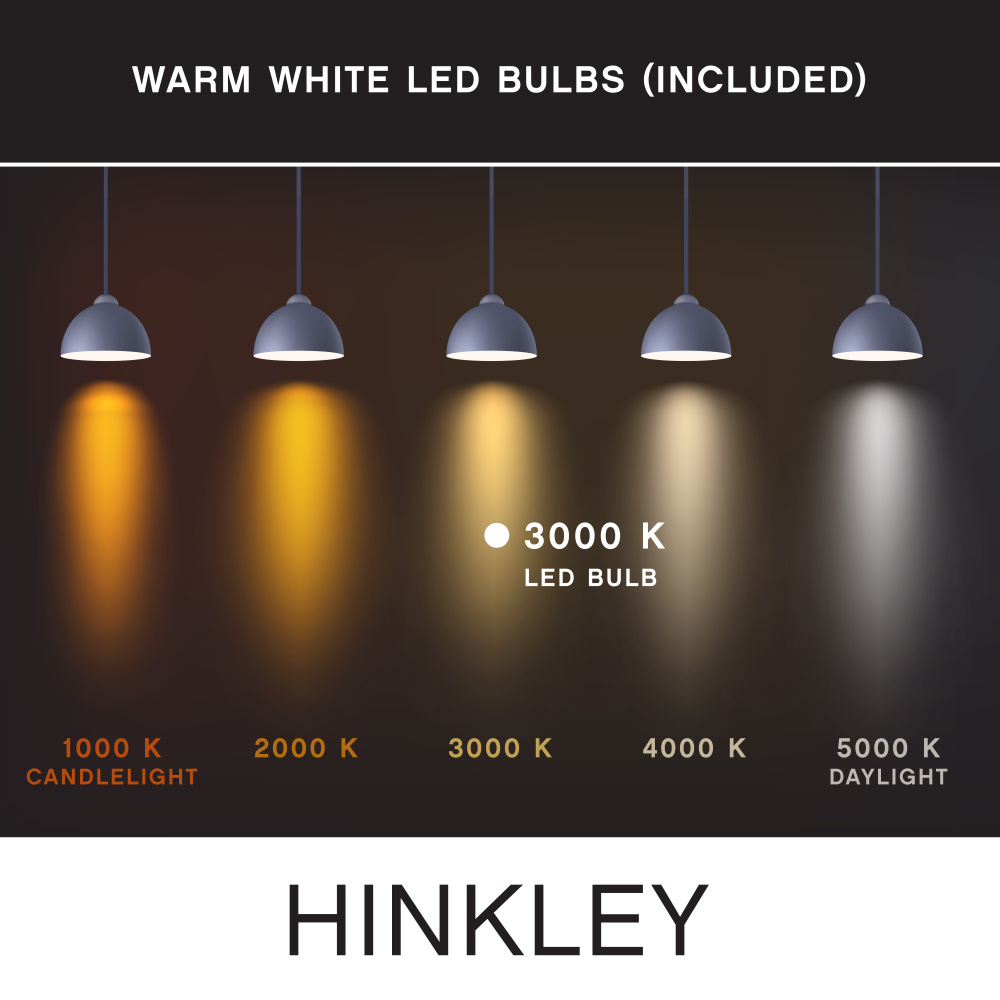

3000
Light Kit Included:
Yes
Lumens / Light Output:
1320
Material:
Steel
Motor Type:
DC
Ship Carton Height:
12.09
Ship Carton Length:
37.91
Ship Carton Width:
15.39
Ship Weight:
26.67
Vendor Ship Method:
Parcel
Weight:
28.6
Airflow Avg:
5227
AMPS Avg:
0.27
Avg Airflow Efficiency:
224
Avg Energy Use Watts:
23
Blade Material:
Wood
Blade Sweep:
56
Blade To Ceiling Height:
10.75
Blades Reversible:
No
Bulb CRI:
90
Bulb Included:
Yes
Control Type:
HIRO Control - 6 Speed Reversing
Country of Origin:
Taiwan
Dimmer Type:
CL Type (SSL7A)
Efficiency High:
223
Energy Cost Avg:
7
Energy Cost High:
9.7
Energy Use High:
34.6
Fan Control:
Yes
Flush Mount Fan:
No
Glass Groups:
White
Incandescent Equivalency:
100 W
Install Sloped Ceiling:
Yes
LED:
Yes
Light Kit Adaptable:
Yes
Light Kit Included Removeable:
Yes
Light Source:
Integrated LED
Location Rating:
Damp Rated
Max Wattage:
16 W
Motor Fan Speed:
6
Motor Name:
DCS-30NS
Number of Blades:
3
Operating Frequency:
60
Prop 65 Description:
CALIFORNIA PROP 65: WARNING: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Receiver Included:
Yes
Reversing Control:
Yes
RPMS Avg:
104
RPMS High:
157
Safety Rating:
ETL Approved
Slope Degree:
20
Title 24:
Yes
Uplight 2:
No
WIFI Control Included:
Yes
Manufactured By:
Hinkley


Additional Information:
  • An optional light kit is availble
  • Bold silhouette with dramatic details creates a modern statement
  • Can be hung on a sloped ceiling
  • Control your fan's power, light, speed, direction, and so much more from the Hinkley Home Automation app

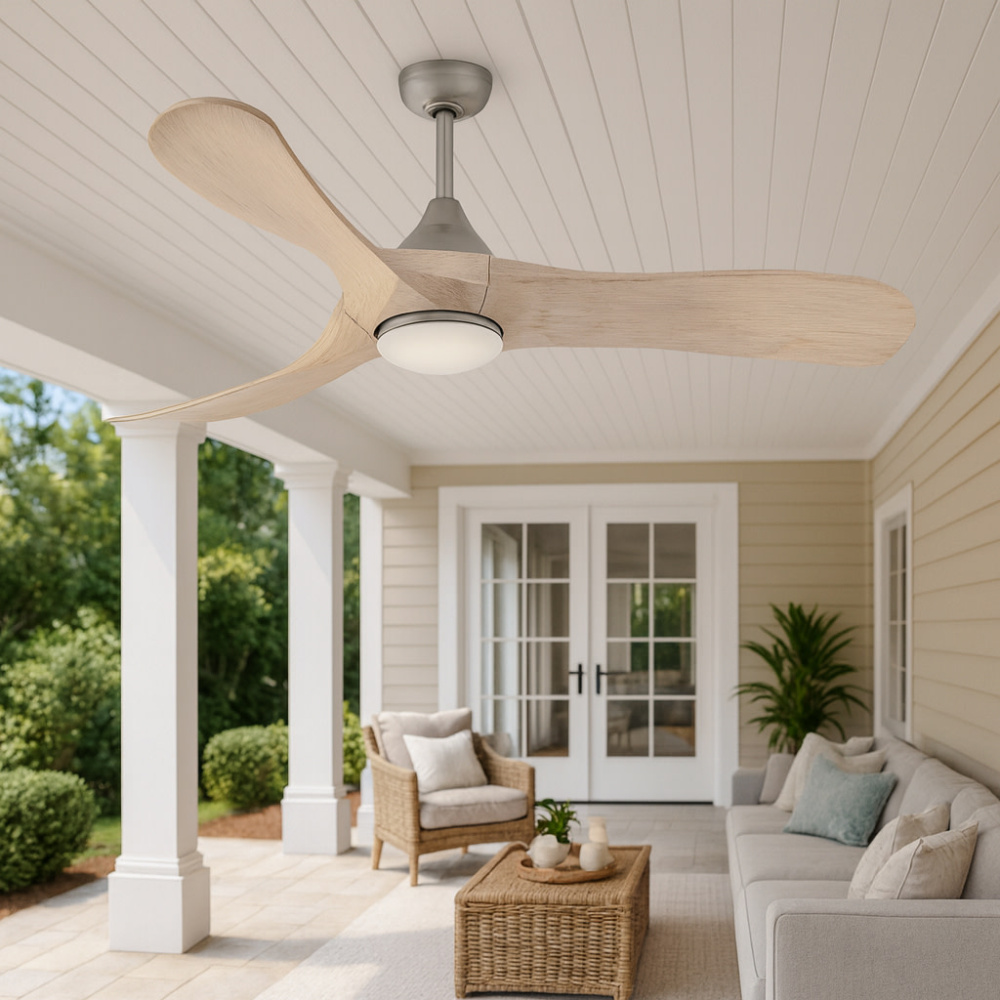

  • Damp rated fans are ideal for fully covered outdoor areas, bathrooms, garages, and sunrooms
  • Energy-efficient integrated LED - safer for the environment and low maintenance
  • Fan Control included, 6 Spd HIRO:R

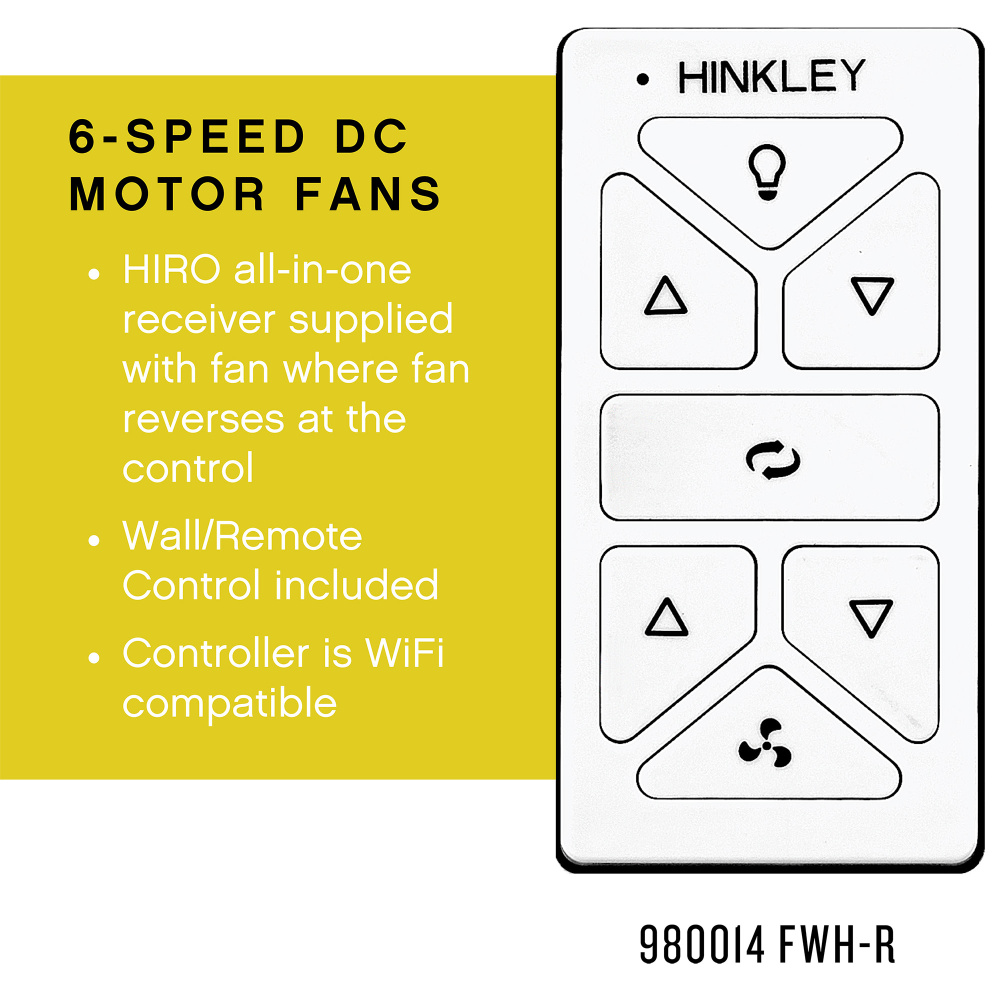

  • Fan Control included, HIRO Control - 6 Speed Reversing. All-in-one HIRO remote controls power, speed, direction, and lighting; use as a wall control or portable remote
  • FAN: 6" Rod Included, FAN: 7ft from floor, Install Sloped Ceiling
  • Fans should be installed at a minimum of 7 feet from the floor
  • LED components carry a 5-year limited warranty
  • Light kit cover included
  • Motor carries a lifetime warranty
  • This item includes a 6" down rod (other lengths of down rods are available)
  • WiFi Enabled Smart Fan is compatible with your home’s WiFi network
