Product Overview

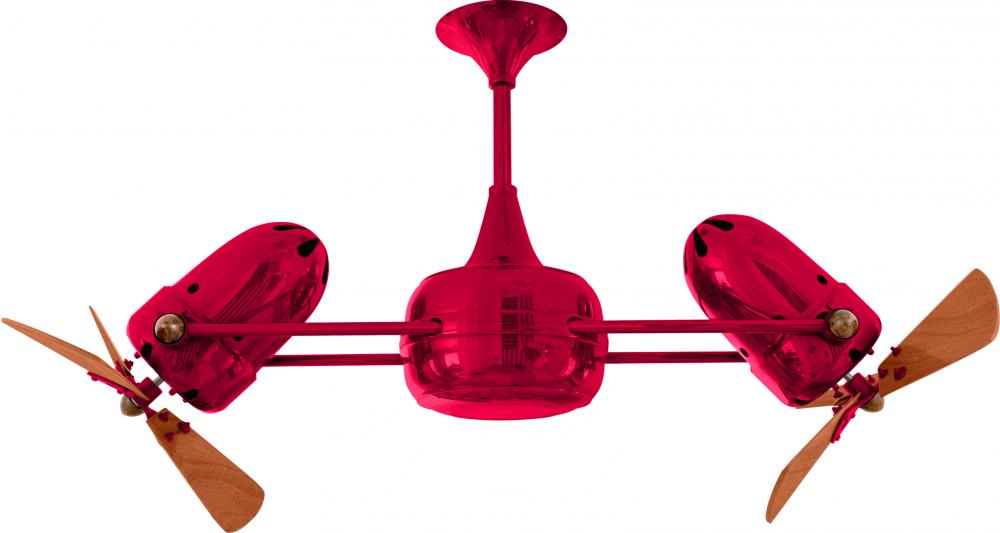

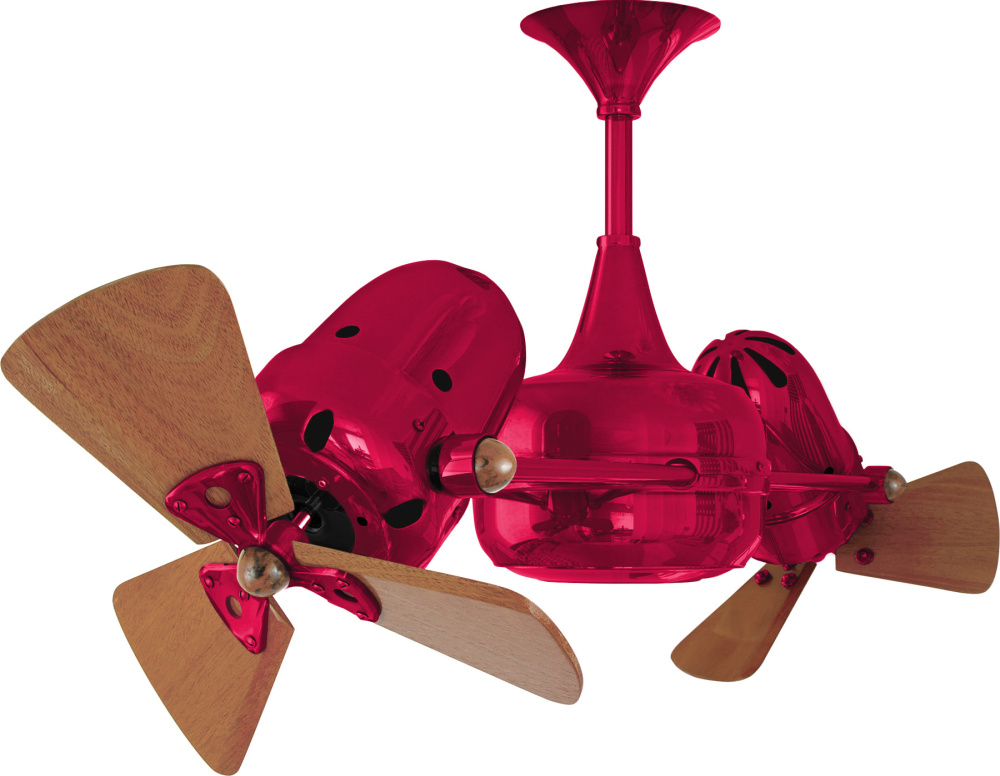

Few designs can match the timeless and sophisticated aesthetic of the Duplo-Dinamico rotational fan. Other manufacturers have tried to reproduce this unique design, though all have proven to be of lesser quality and durability. The fan heads can be infinitely positioned in 180-degree arcs for optimum air movement; the greater the angles of the motors to the horizontal support rods (up or down), the faster the axial rotation. A slow, controlled axial rotation is achieved by both fan head position and fan blade speed.

Standard Information

Category:

Fans

Subcategory:

Dual Motor Fans

Finish:

Miscellaneous

Style:

Contemporary

Option:

Outdoor

Damp Rated

Title 20

Number of Blades:

6 Blades

Location Rating:

Damp Rated

Refinement Options

Category:

Ceiling Fan

Finish:

Rubi

Style:

Contemporary

Option:

Outdoor

Title 20

Family:

Duplo-Dinamico

Air Flow Efficiency:

43

Amperage:

0.52

Blade Finish:

Solid Mahogany Wood

Blade Pitch:

19

Blade Span:

16

Bulb Dimmable:

No

Canopy:

5.5 W x 5.5 D x 2.5 H

Down Rod Included:

10

Introduction Date:

01/01/2019

Keyword(s):

Bedroom, Dining Room, Entryway, Foyer, Hallway, Kitchen, Living Room, Office, Covered Patio, Covered Porch, Basement, Gym, Bathroom

Light Kit Included:

No

Material:

Cast Aluminum, Heavy Spun/Stamped Steel, Marbleized Bakelite

Max Height:

81

Motor Type:

AC

Order Minimum:

1

Ship Carton Height:

11

Ship Carton Length:

33

Ship Carton Width:

13

Ship Weight:

29

Vendor Ship Method:

Small Parcel

Warranty:

Limited Lifetime

Weight:

21

Assembly Required:

Yes

Blade Material:

Solid Brazilian Mahogany

Blade Size:

36

CFM Average:

2942

CFM High:

3210

CFM Low:

2673

Color:

Mahogany

Commercial or Residential Use:

Both

Country of Origin:

Brazil

Downrod Diameter:

0.75

Fan Wattage at High Speed:

74.06

Hanging Type:

Downrod

Height Adjustable:

Yes

Included Control:

Wall

Indoor:

Yes

Light Source Included:

No

Location Rating:

Damp Rated

Made to Order:

Yes

Material Percentage:

Cast Aluminum 40%, Heavy Spun/Stamped Steel 40%, Marbleized Bakelite 20%

MIN Height:

14

Motor Reversible:

No

Motor/Housing Finish:

Rubi

Noise Level:

Soothing White

Number of Blades:

6

Number of Boxes:

1

Number Of Speeds:

3

Oscillates:

No

Outdoor:

Yes

Prop 65 Description:

View

Returnable:

No

RPM High:

1534

RPM Low:

1274

Safety Rating:

UL Approved, cUL Approved

Ship Container:

Box

Sloped Ceiling Compatible:

Optional

Style 2:

Transitional

Title 20:

Yes

Wood Finish:

Solid Mahogany Wood

Wood Type:

Mahogany

360 degrees rotation

All Matthews Gerbar fans are hand made and not mass produced.

Brazilian mahogany is ecologically harvested

Constructed of cast aluminum, heavy spun and stamped steel, this fan carries a limited lifetime warranty.

Each unique motor mount and fan head knob is made of genuine marbleized Bakelite

Flat ceiling canopy. Compatible with 29 Degree vaulted ceiling canopy (sold separately).

Lutron Decora-style SFS-5E fully variable wall switch in white included

Made in Brazil. Assembled and tested with care in the USA.

Made with moisture and humidity-resistant materials suitable for covered outdoor spaces such as patios, porches, or sunrooms

Matthews Gerbar fans do not oscillate on their own. The fan heads can be pivoted to change the direction.

Matthews rotational fans circulate heat and air conditioning more efficiently than traditional paddle fans

Quiet operation with a soothing white-noise effect

Standard Equipment: 10" Downrod. Additional downrod lengths are available and sold separately to achieve the optimal look and functionality for your space

Manufacturer Info

Manufactured By:

Matthews Fan Company
