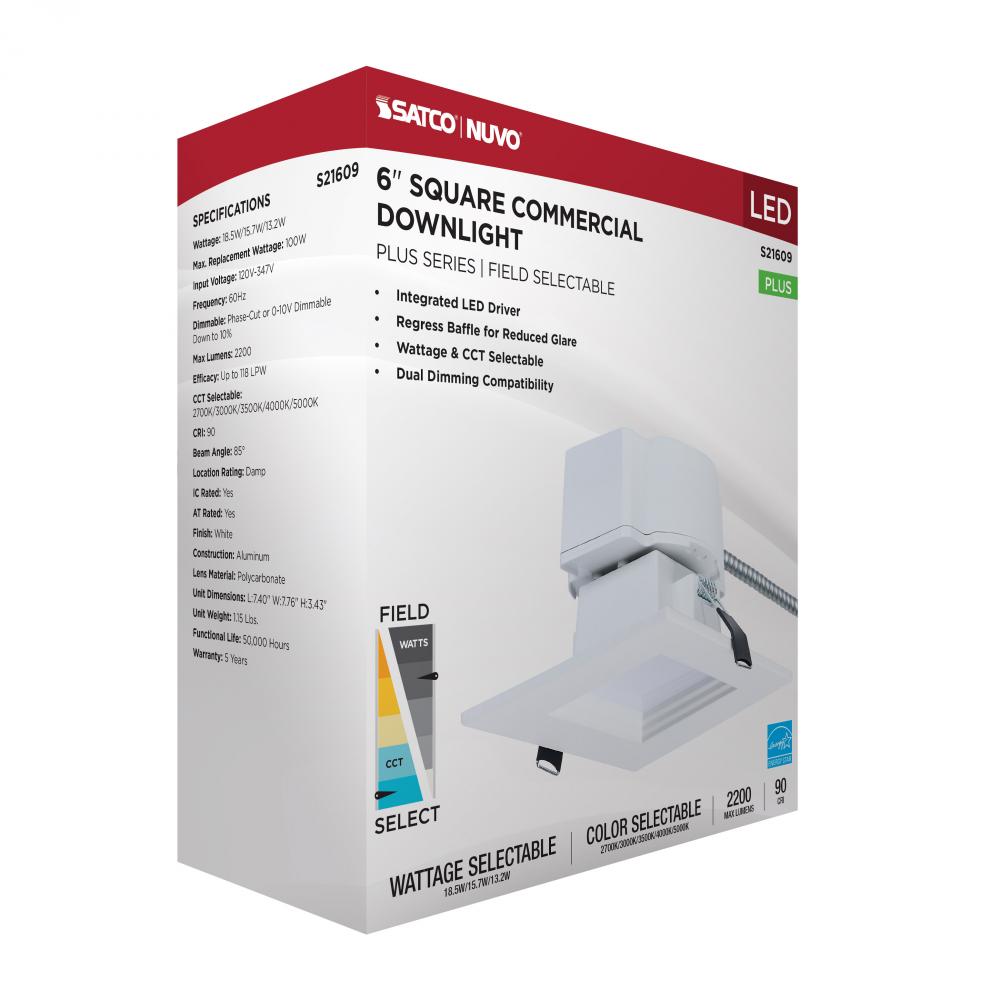

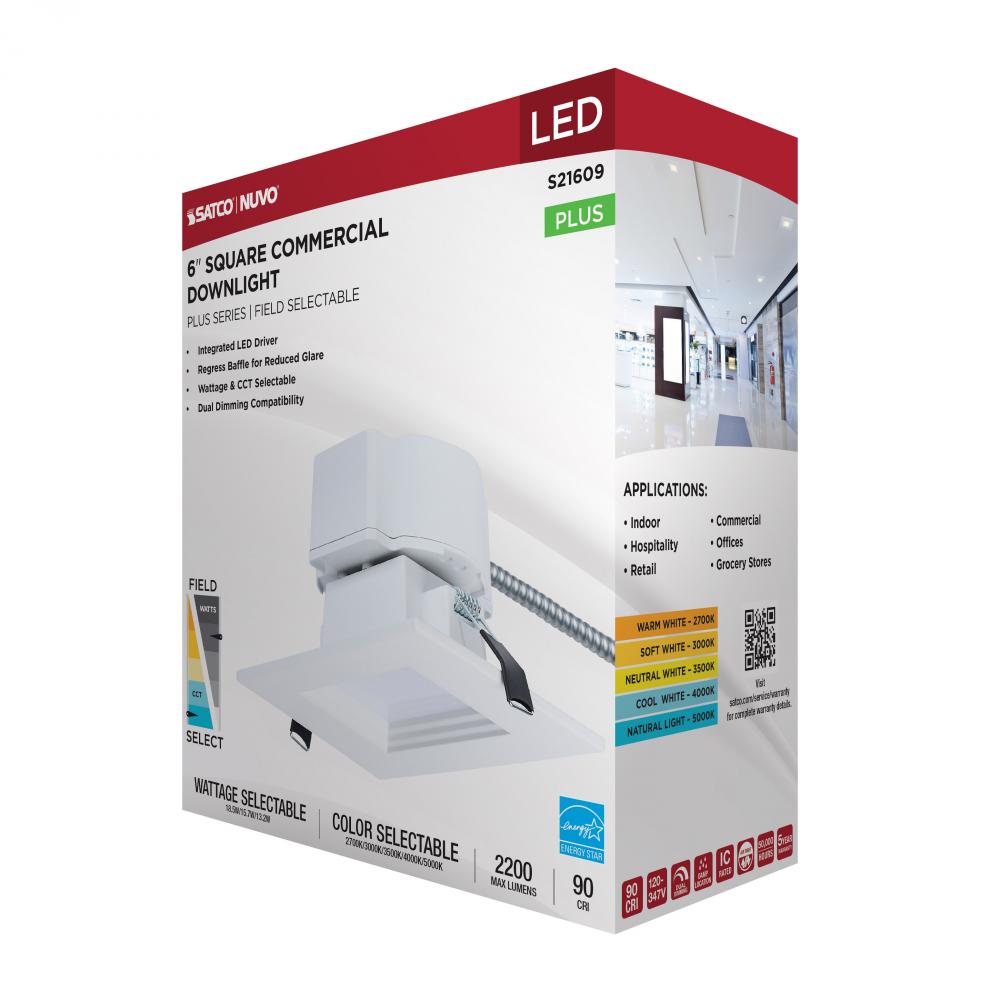

18.5W Field Selectable LED 6-Inch Commercial Downlight; Dual Dimming; Square; 120-347 Volt (S21609) by Nuvo

Image may not reflect selected features

No Image
Available

18.5W Field Selectable LED 6-Inch Commercial Downlight; Dual Dimming; Square; 120-347 Volt

BASE PRICE:

/ / 1

($68.00 / 1)

WAS

Call for Price

Item #:

S21609

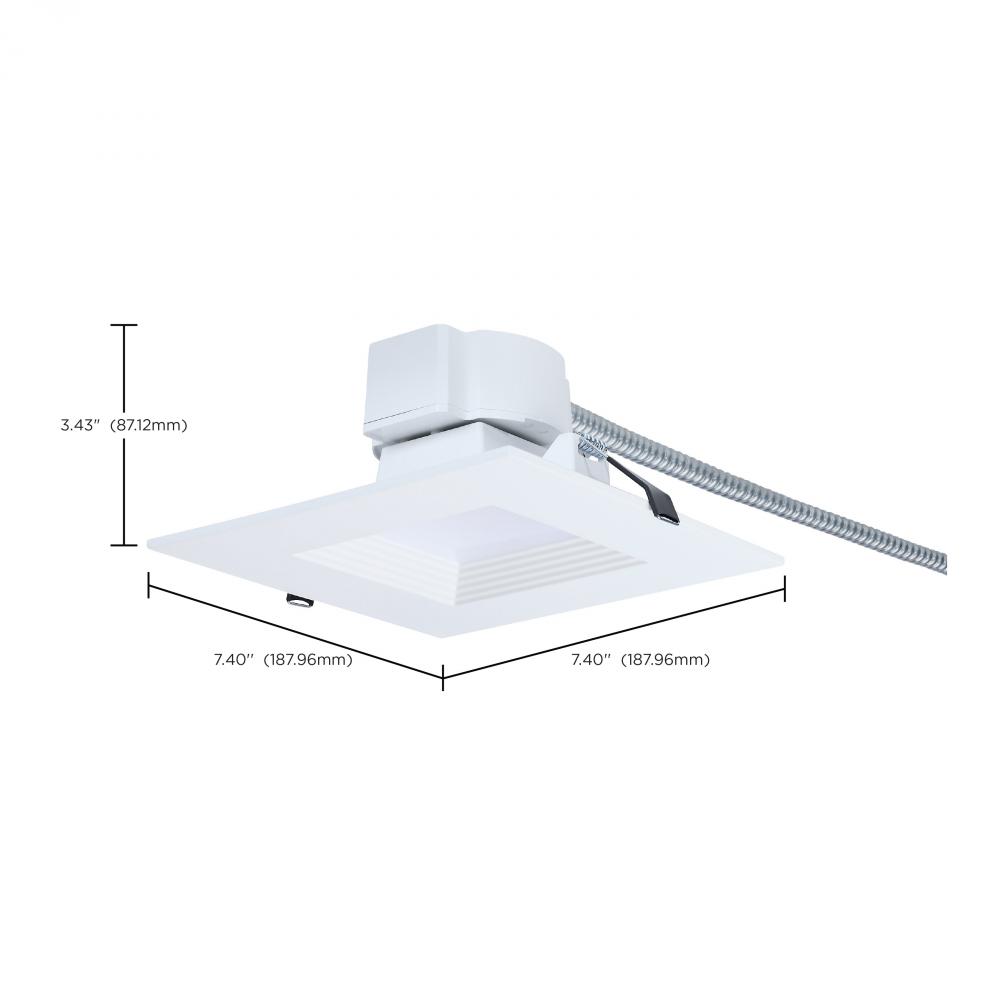

Dimensions:

Height: 3.43"

Width: 7.40"

Finish:

White

Availability:

Manufacturer has 659 items available.

Recommended Items

Description

Details

Downloads

18.5W Field Selectable LED 6-Inch Commercial Downlight; Dual Dimming; Square; 120-347 Volt

Vendor Item #:

S21609

Option:

Energy Star , LED , Prop 65

Category:

Recessed

Sub Category:

Commercial

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White to Natural Light

Dimmable:

Yes-Dimmable

Each Height:

9.06

Each Length:

7.87

Each Width:

3.94

Length:

7.4

Lumens:

2200L/1800L/1400L

Tariff Code:

9405.42.6000

Warranty:

5-Years

Air Tight:

Yes

Amps:

0.154-0.053/0.131-0.045/0.110-0.038A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

California T24 2016 - 2025 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Closet Rated:

Connection:

Hardwire

Country Of Origin:

Thailand

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

Phase Cut at 120V/0-10V at 120-347V

Dimming Type:

Dual Dimming

Each Cube:

0.1626

Each Quantity:

Efficacy:

118.92 LPW

ES Category:

Downlight Recessed

ES Unique ID:

4481354

FCC Compliant:

Yes

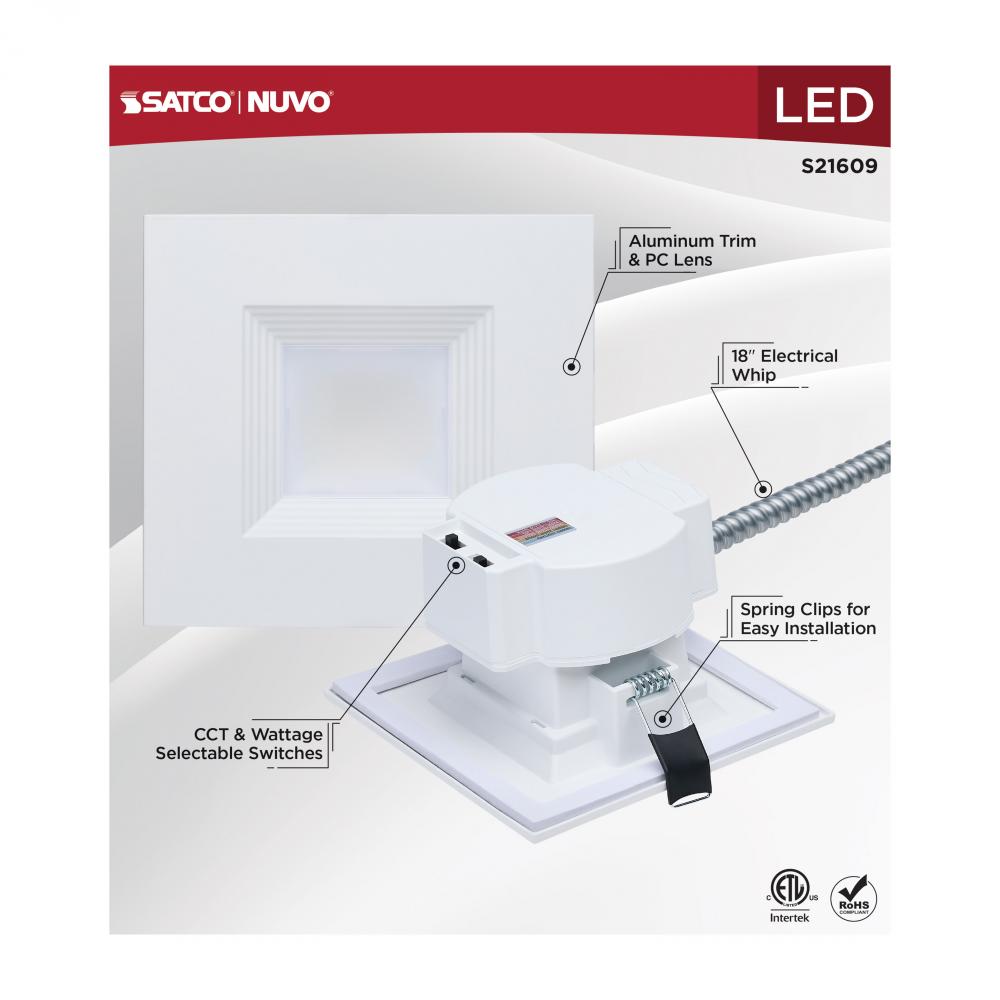

Feature 1:

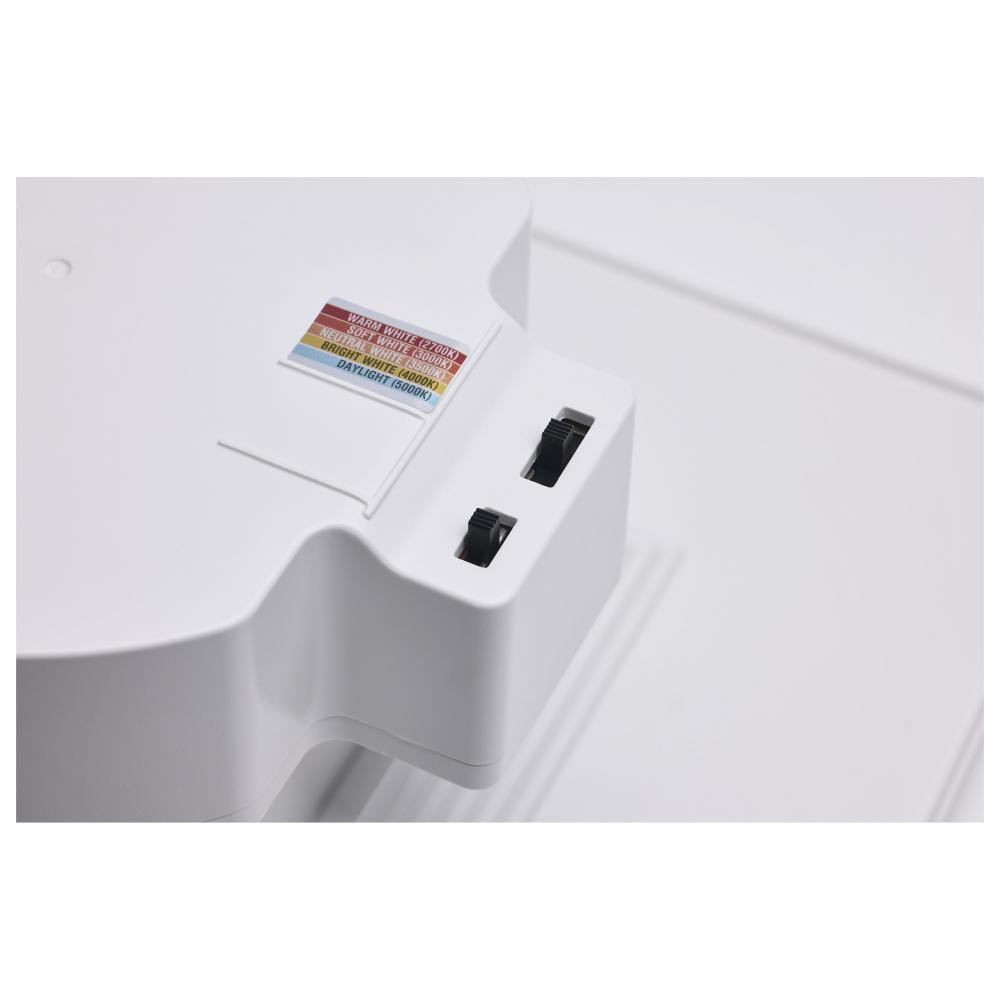

Field Selectable - 5 CCT and 3 Wattage

Feature 10:

5 Year Warranty

Feature 2:

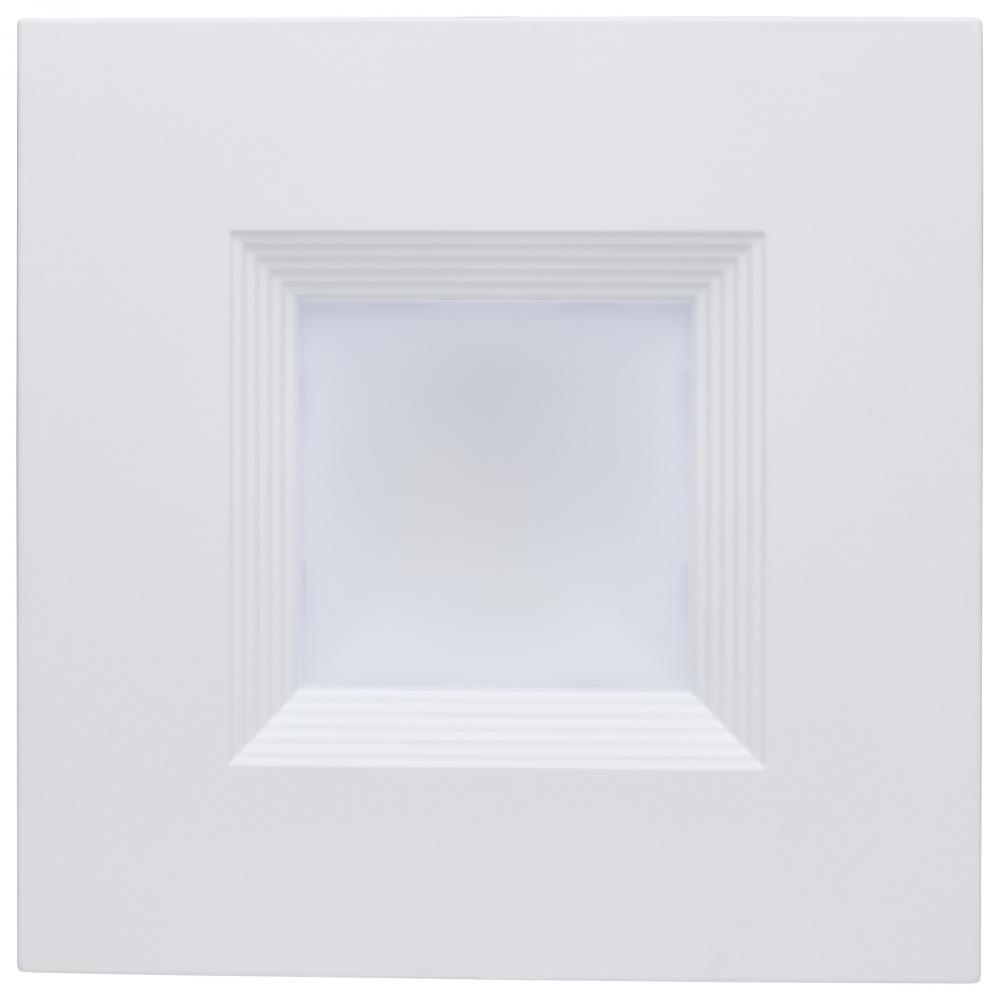

6-Inch Square, Standard Model

Feature 3:

Dual Dimming

Feature 4:

Regress Baffle Design for Reduced Glare

Feature 5:

18 Inch Electrical Whip

Feature 6:

Integrated LED Driver

Feature 7:

90 CRI

Feature 8:

Damp location rated

Feature 9:

50,000 Hour Functional Life

Finish Family:

White

Fixture shape:

Square

Flr Equiv:

32W

Has Camera:

Has Driver:

Yes

Has Emergency Battery:

IC Rated:

Yes

Incandescent Equivalent:

100W

Indoor Outdoor:

Indoor

IOT Enabled:

IP Rating:

IP20

JA8 Compliant:

Yes

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO NUVO's Plus Series LED Commercial Downlight, S21609, delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 6-inch square fixture features field-selectable wattage and CCT settin

Material:

Aluminum

Mounting Height:

3.28

Mounting Length:

6.02

Mounting Procedure:

Ceiling

Mounting Width:

6.02

NSF Approved:

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

Pack Type:

Color Box

Photocell:

Power Factor:

>0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's Plus Series LED Commercial Downlights deliver exceptional performance and versatility for today's remodel or new construction commercial environments. Offered in 4, 6, 8 and 10-inch round or square configurations, these downlights feat

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

18.5W/CDL/6/120-347/FS/SQ/DD

Sloped Ceiling Compatible:

Specification Notes:

Default CCT setting is 3000K. Default wattage setting is 18.5W.

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<30%

Trim Color:

White

Trim Material:

Aluminum

Up Down Installation:

Down

Wattage Selectable:

Yes

Weight Lb.:

1.15

Manufactured By:

Nuvo
