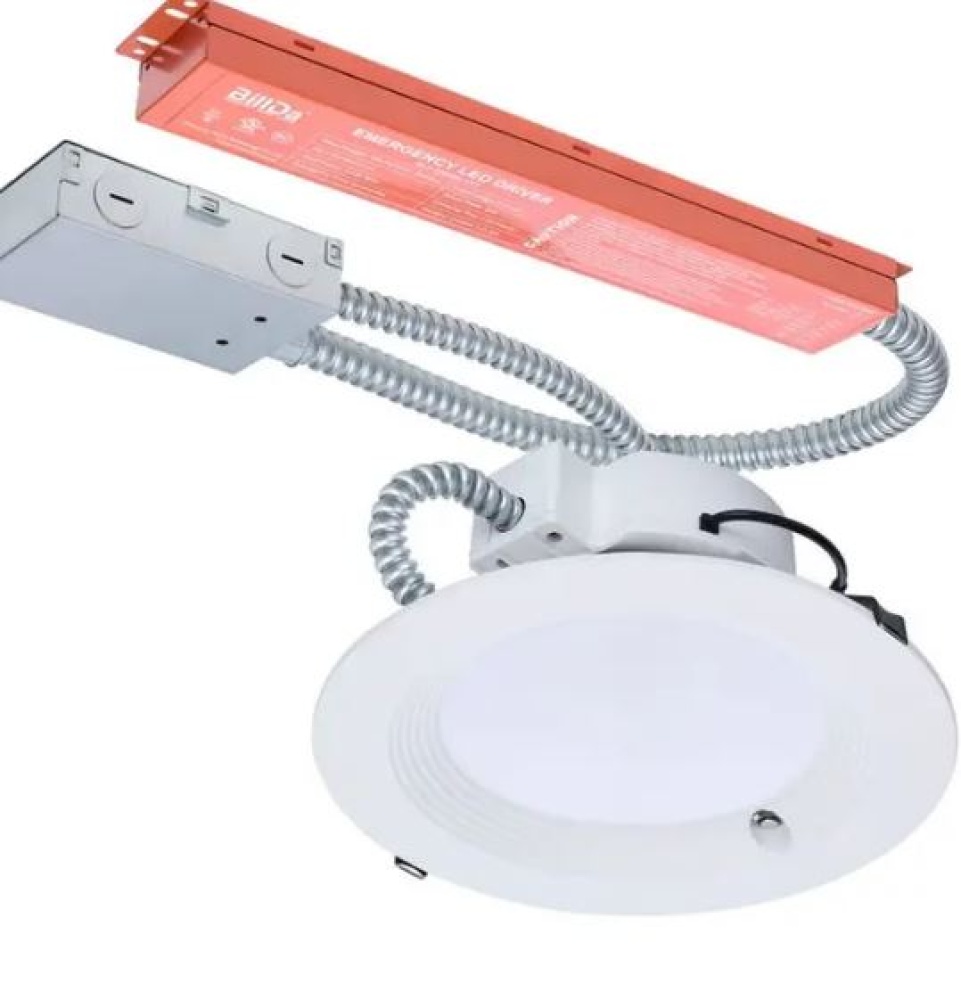

28W Field Selectable LED 8-Inch Commercial Downlight; Dual Dimming; Integrated Emergency Driver; (S21606) by Nuvo

Image may not reflect selected features

No Image
Available

28W Field Selectable LED 8-Inch Commercial Downlight; Dual Dimming; Integrated Emergency Driver;

BASE PRICE:

300

/ / 1

($300.00 / 1)

WAS

Call for Price

Item #:

S21606

Dimensions:

Height: 4.02"

Width: 9.76"

Finish:

White

Availability:

Manufacturer has 294 items available.

Recommended Items

Description

Details

Downloads

28W Field Selectable LED 8-Inch Commercial Downlight; Dual Dimming; Integrated Emergency Driver; Round; 120-347 Volt

Vendor Item #:

S21606

Option:

Energy Star , LED , Prop 65

Category:

Recessed

Sub Category:

Commercial

Style:

Utility

Additional Info:

90 Minute EM Battery Runtime

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White to Natural Light

Diameter:

9.76

Dimmable:

Yes-Dimmable

Each Height:

16.85

Each Length:

10.63

Each Width:

4.21

Lumens:

3200L/2900L/2200L

Tariff Code:

9405.42.6000

Warranty:

5-Years

Air Tight:

Yes

Amps:

0.213-0.073/0.188-0.065/0.143-0.050A

ANSI Base:

Integrated

BAA Compliant:

Battery Chemistry:

Lithium-ion (Li-ion)

Beam Angle:

100

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

California T24 2016 - 2025 JA8 Listed;T20 SBCS Listed under Billda Item BLD-HMXXD-YYY

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Closet Rated:

Connection:

Hardwire

Country Of Origin:

Thailand

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimmable Function:

Phase Cut at 120V/0-10V at 120-347V

Dimming Type:

Dual Dimming

Each Cube:

0.4364

Each Quantity:

Efficacy:

114.29 LPW

ES Category:

Downlight Recessed

ES Unique ID:

4510061

FCC Compliant:

Yes

Feature 1:

Field Selectable - 5 CCT and 3 Wattage

Feature 10:

5 Year Warranty

Feature 2:

8-Inch Round, Emergency Battery Backup Model

Feature 3:

Dual Dimming

Feature 4:

Regress Baffle Design for Reduced Glare

Feature 5:

18 Inch Electrical Whip

Feature 6:

EM Model includes self-diagnostic emergency feature

Feature 7:

90 CRI

Feature 8:

Damp location rated

Feature 9:

50,000 Hour Functional Life

Finish Family:

White

Fixture shape:

Round

Flr Equiv:

2 x 26W CFL

Has Camera:

Has Driver:

Yes

Has Emergency Battery:

Yes

IC Rated:

Yes

Incandescent Equivalent:

125W

Indoor Outdoor:

Indoor

IOT Enabled:

IP Rating:

IP20

JA8 Compliant:

Yes

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO NUVO's Plus Series LED Commercial Downlight, S21606, with Emergency Battery Backup delivers exceptional performance and versatility for today's remodel or new construction commercial environments. This 8-inch round fixture features field-sele

Material:

Aluminum

Mounting Diameter:

7.99

Mounting Height:

3.8

Mounting Procedure:

Ceiling

NSF Approved:

Operating Frequency:

60Hz

Operating Temp:

+5C (+41F) to +40C (+104F)

Order In Multiples Of:

Pack Type:

Color Box

Photocell:

Power Factor:

>0.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's Plus Series LED Commercial Downlights deliver exceptional performance and versatility for today's remodel or new construction commercial environments. Offered in 4, 6, 8 and 10-inch round or square configurations, these downlights feat

Safety Listing:

cETLus - Listed

SDS class:

Lithium_Ion_Battery

Short Description:

28W/CDL/8/120-347/FS/RND/DD/E

Sloped Ceiling Compatible:

Specification Notes:

Default CCT setting is 3000K. Default wattage setting is 28W.

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Yes

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<30%

Trim Color:

White

Trim Material:

Aluminum

Up Down Installation:

Down

Wattage Selectable:

Yes

Weight Lb.:

3.9

Manufactured By:

Nuvo
